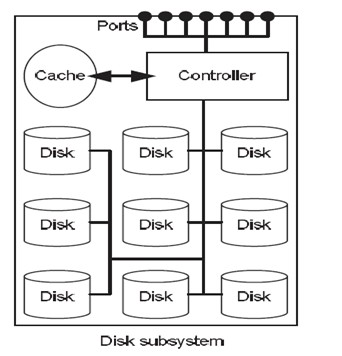

Component architecture of intelligent disk subsystem

The component architecture of an intelligent disk subsystem, also known as an intelligent storage system, typically consists of several key components that work together to provide advanced storage capabilities and intelligent data management.

The specific architecture may vary depending on the manufacturer and the specific features offered.

Here are the fundamental components commonly found in intelligent disk subsystems:

1. Disk Drives:

The primary storage medium in the subsystem is the disk drives themselves. These drives can be traditional hard disk drives (HDDs) or solid-state drives (SSDs) or a combination of both. The disk drives store the actual data and provide the storage capacity.

2. Controllers:

Intelligent disk subsystems include controllers responsible for managing the disk drives and handling data access requests. These controllers typically have embedded processors and firmware that enable advanced features such as caching, data protection, RAID (Redundant Array of Independent Disks), and other storage management functionalities.

3. Cache:

Intelligent disk subsystems often include a cache memory component, which acts as a high-speed buffer between the disk drives and the host system. The cache is used to temporarily store frequently accessed data, reducing latency and improving overall system performance. It helps in accelerating read and write operations.

4. Connectivity Interfaces:

The intelligent disk subsystem is connected to the host system or network using various connectivity interfaces. Commonly used interfaces include Fibre Channel (FC), iSCSI (Internet Small Computer System Interface), SAS (Serial Attached SCSI), or Ethernet-based protocols like NFS (Network File System) or SMB (Server Message Block).

5. Data Protection Mechanisms:

Intelligent disk subsystems include mechanisms to ensure data integrity and protection. This may involve techniques such as RAID, which provides redundancy and data striping across multiple disk drives to protect against disk failures and ensure data availability. Other data protection features can include snapshots, replication, mirroring, or encryption.

6. Management Software:

Intelligent disk subsystems are typically accompanied by management software that allows administrators to configure, monitor, and manage the storage system. The management software provides a graphical user interface (GUI) or command-line interface (CLI) to perform tasks such as capacity provisioning, performance monitoring, health monitoring, and firmware updates.

7. Monitoring and Reporting:

Intelligent disk subsystems often include monitoring and reporting capabilities to track system performance, capacity utilization, and health status. These features provide administrators with insights into the system’s behavior, allowing them to identify and address potential issues before they become critical.

8. Advanced Features:

Intelligent disk subsystems may incorporate additional advanced features depending on the specific vendor and model. These features can include tiered storage, which automatically migrates data between different storage tiers based on access patterns and data value. Other features may include thin provisioning, data deduplication, compression, storage virtualization, or integration with cloud storage.
